Technical Specifications
Product Description:

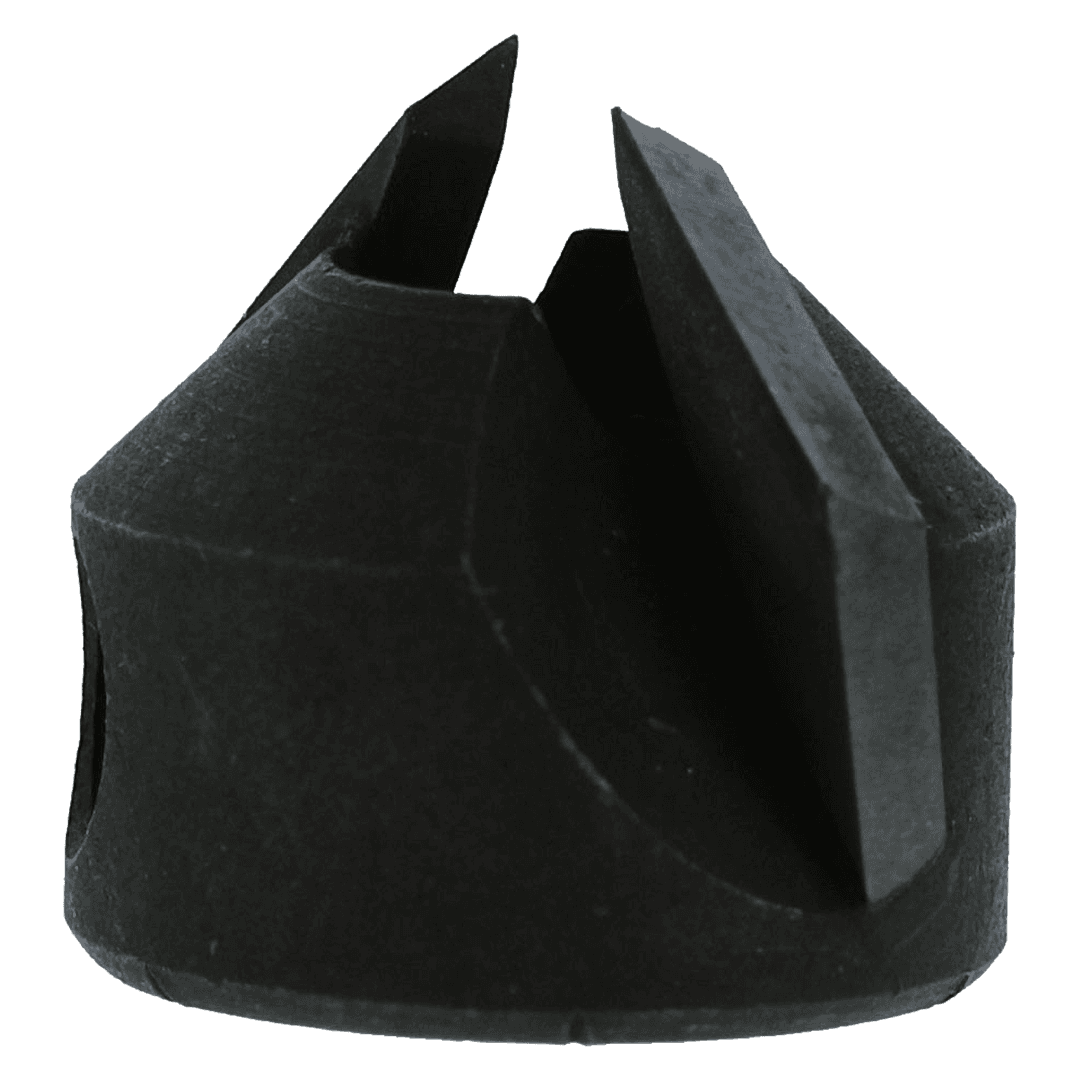

Freud's Carbide Tipped Boring Bit Countersinks are engineered to meet the most demanding industrial applications. These 82 degree countersinks slip over the body of your boring bits and are held in place with a set screw.
Certified Freud & Diablo Blade Sharpening
Factory-trained precision sharpening for over 40 years
"The sharpened blades were excellent. I feel that Family Hardware went out of their way to make the whole process very simple and convenient."
~ Ben - AZ
Free Return Shipping on 10+ Blades
Mail-In Sharpening Order Form
Nationwide service with free return shipping
Get Sharp Blades in 4 Simple Steps
*When sending at least 10 blades.
Request a Prepaid Shipping Label
We send you the forms to send us your blades.
Ship us Your Blades
We send you the forms to send us your blades.
We Sharpen Your Blades
We send you the forms to send us your blades.
We Ship Your Blades Back
You receive tracking as soon as your blades leave our shop
Sharpening Carbide Saw Blades for Over 40 Years
Family Hardware has specialized in the sharpening of carbide tipped saw blades for over 40 years. Every day hundreds of customers around the country rely on us to keep their shops running at peak efficiency.
Using methods handed down 3 generations, we use a mix of old skill knowledge, with cutting edge machinery to get the job done right. We are constantly investing in new technology and upgrading our existing equipment to deliver the superior quality that will keep your blades running longer and cutting better.
Sharpening Price List
Professional sharpening for Freud, Diablo, and all major carbide blade brands. Factory-trained technicians using precision equipment.
Carbide Saw Blades
Diameter | Tooth Count | Price |
|---|---|---|
| 7" | 0-39 | $13 |
| 7" | 40+ | $14 |
| 10" | 0-39 | $17 |
| 10" | 40+ | $19 |
| 12" | 0-50 | $20 |
| 12" | 50+ | $22 |
| 14" | 0-50 | $27 |
| 14" | 50+ | $30 |
| 16" | Any | $35 |
| 18" | Any | $40 |
Router Bits
Type | Price |
|---|---|
| Carbide - 1 Cutting Edge | $9.50 |
| Carbide - 2 Cutting Edges | $12.49 |
| Carbide - 3 Cutting Edges | $18.25 |
| Carbide - 4 Cutting Edges | $22.00 |
| Carbide - 6 Cutting Edges | $30.00 |
| Slot Cutter | $15.00 |
Dado Sets
Item | Price |
|---|---|
| Dado Set (up to 5 chippers) | $50 |
| Additional Chippers (each) | $2.50 |
Blade Repair
Service | Price |
|---|---|
| Replace Carbide Tips (each) | $5.75 |
| Replace Broken Post (each) | $20 |
FREE RETURN SHIPPING when you send in 10 or more blades at once!
Includes all Freud and Diablo blades - TiCo carbide, Perma-SHIELD coated, and standard carbide
Our Process
1
Receiving Your Blades
Your blades are received and checked into our system, where you receive an automated email. We then immediately laser etch your name on the front of the blade so that it stays linked to you, from the second we receive it.
2
Polishing and Cleaning
All blades are cleaned in an ultrasonic bath and wire brushed with a nylon wheel. The ultrasonic bath helps loosen debris and the nylon wire wheel helps clear any surface debris away from the tooth without damaging the tooth like a steel wire wheel brush would.
3
Measuring and Inspection
Once cleaned, your blades are measured up and sorted into our work flow for one of our 6 CNC saw grinders. We inspect blades prior to going on our machine. We note significant run out and mark it on the blade so that we can correctly grind your blade into proper shape. Any blade needing tip work or that cannot be ground, are weeded out at this point in the process.
4
Grinding
Your blades are top and face ground. We have 2 dedicated top grinding machines, 1 dedicated facing machine and 3 machines that can do both grinds in a single cycle. Once ground, we again visually inspect the blade, as well as checking for any run out. Blades are to have 95% of the teeth within .002″ tolerance, and no two teeth can be more than .004″ apart in height.
5
Shipping
Blades are dipped in a wax protective coating prior to shipping back. If you sent your blades in boxes, or a special case, you will receive these back. If not, your blades are shipped in our custom boxes designed for saw blade shipping and are separated by cardboard dividers custom made to fit the profile of our shipping box.
Our 4 Point Inspection Process
Tooth Runout - .002" tolerance, no two teeth more than .004"
Plate Concentricity - .003” tolerance
Bent/Broken Tips
Visual Inspection - under Microscope for micro chipping.
We Now Sharpen Cold Saw Blades
No matter the brand, size, configuration or tooth count, we can sharpen and repair all cold saw blades. Using the latest technology we can keep your blades running, saving you time from having to purchase new.
Sharpening details
Frequently asked questions
Quick answers for packing, shipping, insurance, and what happens once your blades arrive.
We use dedicated CNC sharpening equipment to restore tooth geometry with repeatable precision. Here are a few of the machines involved in the process.
Request An Order Form
What happens Next?
1
After completing the form, we will send you our sharpening order form and a UPS prepaid label, if you wish to download our form directly and send in blades yourself, you may do so by clicking here.
2
Once we receive your blades, we will check them in and begin our sharpening process. After check-in the blades go into our sharpening queue. Please contact us anytime for current lead times on sharpening.
3
We will use the payment form you designated on the order form to charge for the order. If you would like us to call for a credit card, or call us before to get a total and send a check with your blades, you may do so as well.
4
Lastly we will ship your blades back to you for you to enjoy!
